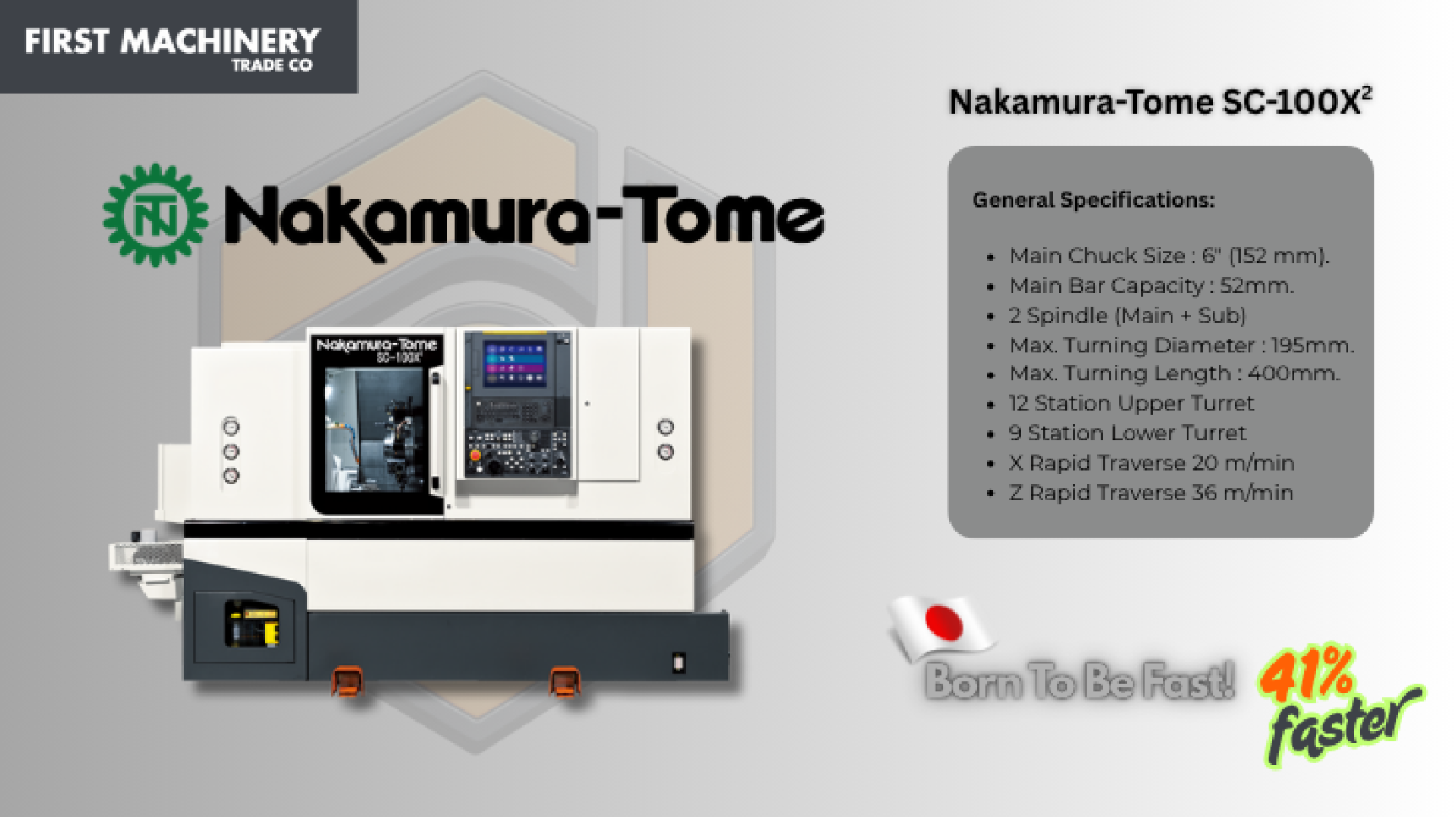

NAKAMURA TOME SC-100X2

Last updated: 22 Jul 2025
168 Views

The SC-100X2 is positioned as a highly productive machine that offers significant cycle time reductions (reportedly 41% faster than the SC-100). Its ability to perform superimposed and simultaneous machining makes it suitable for complex parts and a wide range of manufacturing sectors, including medical, construction, and general engineering. It's designed to be easy to operate with its intuitive software and automation features.

Key Features:

Twin-Turret Design: Utilizes two tools on either side of the upper turret for superimposed machining.
Superimposed Machining: Allows for simultaneous machining through overlapping control between the main and sub-spindles, significantly reducing cycle times.
Y-axis: Standard on the R-upper turret with a stroke of ±40mm (80mm total).
Milling Capability: Includes milling functions with dedicated milling tool stations.

FANUC CNC Control and Servo Drives: Ensures reliable and precise control.
User-Friendly Software: Features Nakamura-Tome's original unique software like "NT Manual Guide i" for fast and easy programming and setup, including drag-and-drop functionality for multi-path programs.

Oscillating Cutting: Helps prevent stringers or bird's nesting.

Digital Chuck Interlock: Reduces setup time by allowing arbitrary setting of chuck open/close positions.

Unloading Gripper with Built-in Parts Conveyor: Standard for automated bar work.
Thermal Compensation System using AI: Minimizes the impact of thermal changes on machining accuracy.

Technical Specifications:
Max Turning Diameter: 195 mm (7.7")
Max Turning Length: 400 mm (15.7")
Bar Capacity:
     Main Spindle: 52mm (2") Standard / 51mm
     Sub Spindle: 43mm (1.69") / 42mm
Chuck Size: 6" (152 mm) for main spindle, 5" or 6" for sub-spindle.
Spindle Speed: 6,000 min$^{-1}$ (rpm) for both main and sub-spindles.
Spindle Motor: 15/10 HP (Main Spindle), 7.5/5.5 kW (Sub Spindle)
Axis Travel:
     X-axis: 150 mm (5.9")
     Z-axis: 400 mm (15.7")
     Y-axis: ±40mm (1.6")
Rapid Feed Rate:
     X-axis: 20 m/min (787 in/min)
     Z-axis: 36 m/min (1418 in/min)
     Y-axis: 6 m/min (236 in/min)
Turrets:
Upper Turret: 12 stations, 24 indexing positions (dodecagonal drum turret for milling).
Lower Turret: 9 stations, 9 indexing positions (circular arc sub-turret, sometimes with unloading gripper).

Milling Tools: Spindle speed 6,000 rpm, 12 milling-tool stations.
Machine Weight: 6,500 kg (14,330 lbs)

Floor Space (L x W x H): 3,072mm × 1,974mm x 1,799mm (121" × 78" x 71")
